Hydrogen Station

Product Description

Hydrogen Station

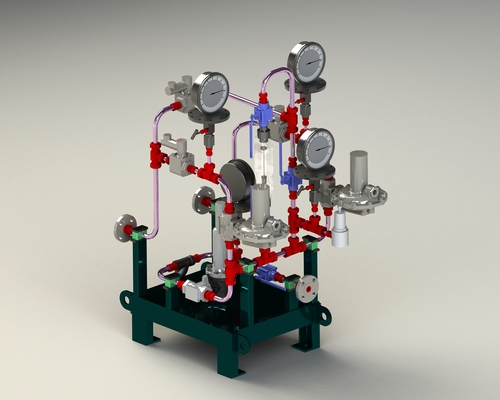

Series H100 & H200 are compact hydrogen pressure regulation station ideally designed for cylinder cascade / trolley or cylinder unloading. This standardized station is cost effective solution for applications where hydrogen gas at constant controlled pressure is desired for hydrogenation process in the industries such as pharmaceutical, chemical, edible oil, aromatics, etc..

High accuracy in control of final outlet pressure supplied to process is guaranteed with two stage pressure reduction, despite varying inlet pressure as cylinder get emptied from full pressure of 200 Bar down to almost pressure required at outlet. The high pressure side components of the station are designed for operating pressure of 210 Bar (3000 psi).

Key Features

• Operating Safety : Being a high pressure station, two level safeties are incorporated at first stage regulator viz:-
  a} Safety Shut Off: Incase of over pressure at first stage pressure regulating valve outlet, safety shut off valve, cuts gas supply.
  b} Full capacity safety relief valve to safeguard the further equipments in case of malfunction of the regulator.

• Full utilization of Cylinders / Trolley : Due to very low pressure drop technology adopted in design, hydrogen in gas is fully utilizes. Thus system pays back by ensuring fast and maximum possible emptying of hydrogen cylinders, reducing batch time and reducing number of cylinders change over as compared to other means of hydrogen unloading.

• Less Flange Joints : Having a single flange joint at high pressure section, all other joints are welded construction thus eliminating the leakage possibilities.

• Twin Stream Redundancy : Where application is critical and redundancy is required, 2 units can be installed side by side, one working and other stand-by with fabricated common outlet end.

• Compact Design : The construction of station is compact having easy accessibility to all the components for operation and maintenance.

• Easy Maintenance : Need not to remove any component from the line for maintenance, making maintenance of all the components easy.
