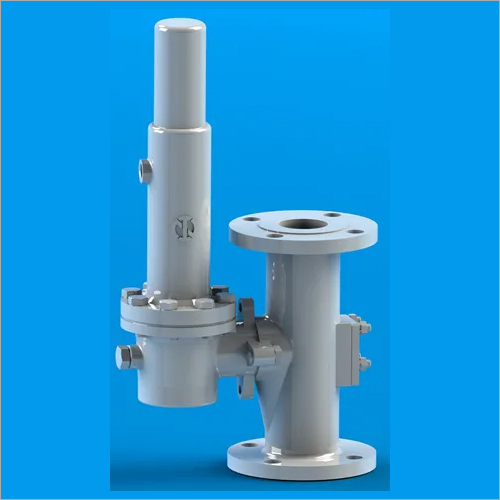

Downstream Direct Acting Pressure Regulator D82 Series

Product Description

The D82, High performance, High pressure lever type regulator is a direct acting spring loaded regulator, which can be used for all non-aggressive gases. The lever mechanism ensures exact outlet pressure and provides quick response when the flow rate varies .Typical application includes for commercial & industrial, fuel gas applications and many industrial utility applications.

Key Features:

• Glandless Construction : Where positive zero gland leakage is required, the design scores conventional solutions such as bellow seal etc., as the gland itself eliminated and hence there won't be gland leakage. Gland less construction eliminates hysteresis, resulting in improving sensitivity and repeatability of the valve.

• Tamper Resistant : An adjustment screw with protective cap is standard to discourage tampering with pressure setting.

• Ease of Maintenance : Regulator internals can be inspected without removing body form line.

• Tight Shut off Capability : Provides excellent tight shut off capability over long working life.

• Over/Under Pressure Cut Off : Available with Integral Over/under pressure Cut-Off Slam Shut Valve.
